Guides

Navigation Rules

Copy page

When you add an OpenAPI spec to Zudoku, the sidebar is generated automatically from the schema's tags and operations. Navigation rules let you extend or modify that sidebar without changing the schema itself. Common use cases include inserting getting-started docs, adding external links, or hiding deprecated endpoints.

Setup

Navigation rules require two things in your zudoku.config.tsx:

1. A navigation entry that creates a tab linked to your API
2. A navigationRules array with rules that target that tab

Code

import type { ZudokuConfig } from "zudoku";

const config: ZudokuConfig = {
  apis: [
    {
      type: "file",
      input: "./schema/shipments.json",
      path: "api-shipments",
    },
  ],
  navigation: [{ type: "link", label: "Shipments", to: "/api-shipments" }],
  navigationRules: [
    // rules go here
  ],
};

Inserting docs

Use type: "insert" to add items before or after a matched sidebar item. The match string uses the tab label as the first segment and navigates into the sidebar tree.

Code

navigationRules: [
  {
    type: "insert",
    match: "Shipments/0",
    position: "before",
    items: [
      {
        type: "doc",
        file: "api-shipments/getting-started",
        icon: "plane-takeoff",
      },
    ],
  },
],

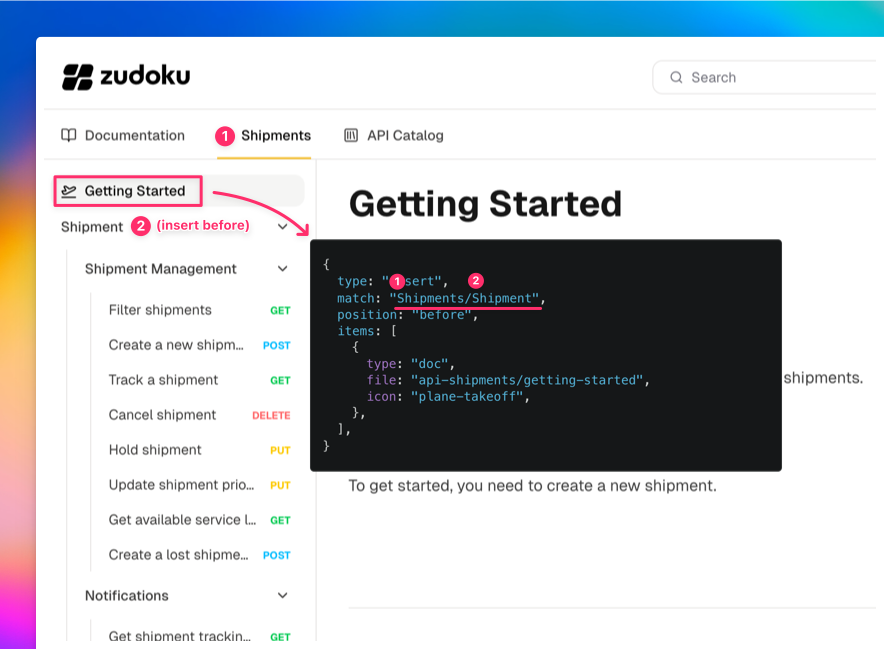

This inserts a "Getting Started" doc before the first item in the Shipments sidebar.

The MDX file lives at pages/api-shipments/getting-started.mdx (under your configured docs directory, matching the API's base path).

Adding links

You can insert external or internal links the same way:

Code

{
  type: "insert",
  match: "Shipments/-1",
  position: "after",
  items: [
    {
      type: "link",
      label: "System Status",
      to: "/status",
      icon: "satellite",
    },
  ],
}

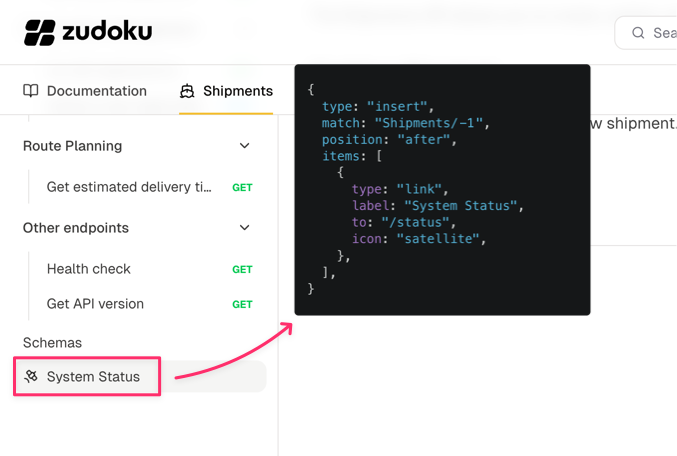

The -1 index targets the last item, and position: "after" places the link at the very end of the sidebar.

Modifying items

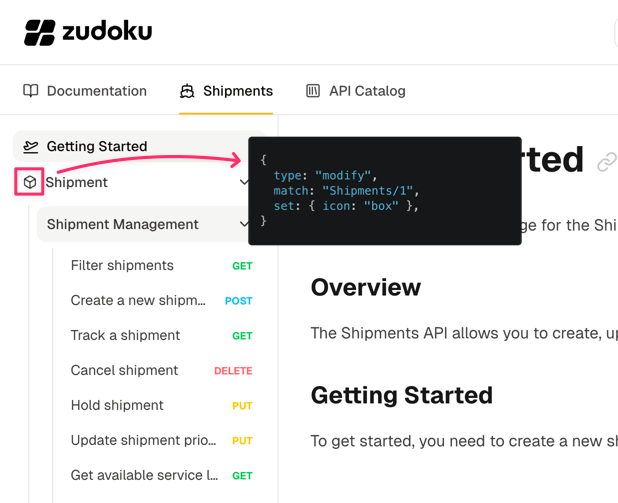

Use type: "modify" to change properties of existing sidebar items like their icon, label, or collapsed state:

Code

{
  type: "modify",
  match: "Shipments/Shipment Management",
  set: { icon: "box", collapsed: true },
}

Removing items

type: "remove" hides items from the sidebar. This is rarely needed since it's usually better to fix the underlying source, but can be useful as a quick workaround:

Code

{
  type: "remove",
  match: "Shipments/Deprecated Endpoint",
}

Complete example

This is the configuration used in the Cosmo Cargo demo shown above:

Code

navigationRules: [
  {
    type: "insert",
    match: "Shipments/Shipment",
    position: "before",
    items: [
      {
        type: "doc",
        file: "api-shipments/getting-started",
        icon: "plane-takeoff",
      },
    ],
  },
  {
    type: "insert",
    match: "Shipments/-1",
    position: "after",
    items: [
      {
        type: "link",
        label: "System Status",
        to: "/status",
        icon: "satellite",
      },
    ],
  },
  {
    type: "modify",
    match: "Shipments/1",
    set: { icon: "box" },
  },
],

Match syntax reference

For the full match syntax including label matching, index selectors, and nested paths, see the Navigation Rules reference.
